Pentair CCP320 EC-160340 Clean & Clear Plus Multi Cartridge Filter, 320 Sq Ft
Pentair CCP320 EC-160340 Clean & Clear Plus Multi Cartridge Filter, 320 Sq Ft
The Clean & Clear Plus Filters feature a corrosion-resistant, injection-molded tank known for its strength and durability. The filter system includes four easy-to-clean, non-woven polyester cartridges. Each filter also has a bulkhead union set, making installation simple and straightforward.
- Certified to NSF/ANSI Standard 50
- Large filter area for increased dirt capacity
- 1-1/2 in., 100% drain clean-out port
- Continuous High Flow™ Internal Air Relief*
- Base and plumbing kits available
- Injection-molded tank
- Balanced hydraulic flow
- Tension Control™ Clamp
- 100% factory tested
- Black bulkhead unions
- High-flow manual air relief valve
- Includes a filter system with four (4) cartridges
SPECIFICATIONS:
- Brand: Pentair
- Application: Pool, Spa
- Weight: 70 pounds
- Green or Energy-Efficient Product: True
- Height: 43 inches
- Standards Approvals: ANSI Standard 50 Certified
- Cartridges Required: 4 (included)
- Design Flow Rate: 120 gal/min
- Filter Tank Molding Type: fiberglass
- Filtration Area: 320 square feet
- Filtration Rate: 120 GPM/ft2
- Inlet/Outlet Sizes: 1.5 / 2" Unions
- Maximum Flow Rate: 120 gal/min
- Maximum Working Pressure: 50 pounds per square inch
- Pipe Size: 2 inch
- Plumbing Size: 2 inch
- Side Clearance: 6 inch
- Turnover 12hrs: 86400 gallon
- Turnover 6hrs: 43200 gallon
- Turnover 8hrs: 57600 gallon

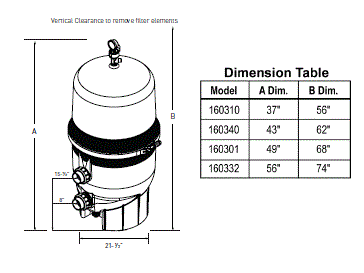

- Vertical Clearance: 62 inch
SUPPORT DOCUMENTS:

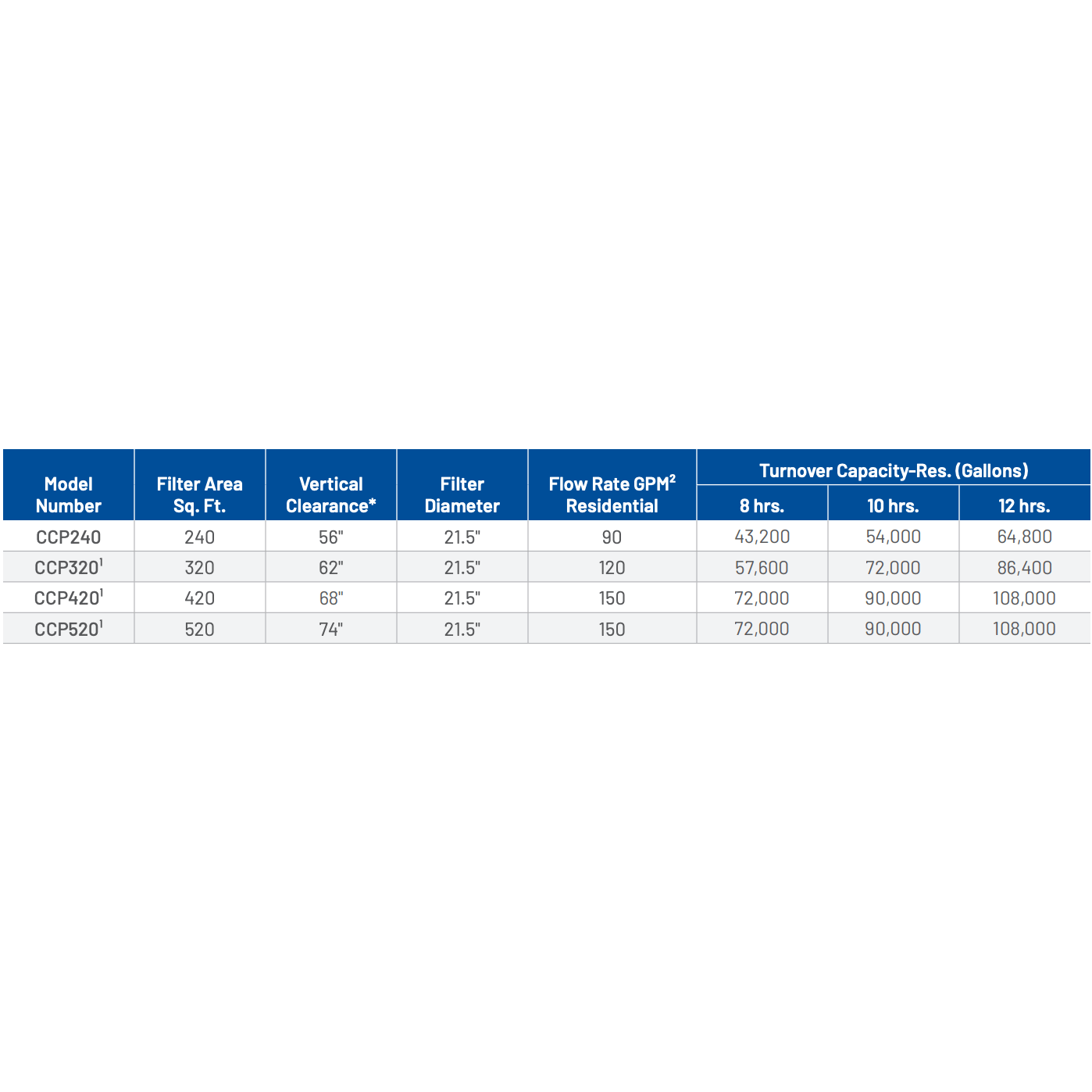

Series Specifications:
- 160310 CCP240 240 90 GPM
- 160340 CCP320 320 120 GPM
- 160301 CCP420 420 150 GPM
- 160332 CCP520 520 150 GPM
- EC-160340 CCP320, 320 120 GPM
- EC-160301 CCP420, 420 150 GPM
- EC-160332 CCP520, 520 150 GPM
Please Note: This pool filter ships via free LTL freight. Someone must be available to sign for delivery. You can view our full shipping policy here.
