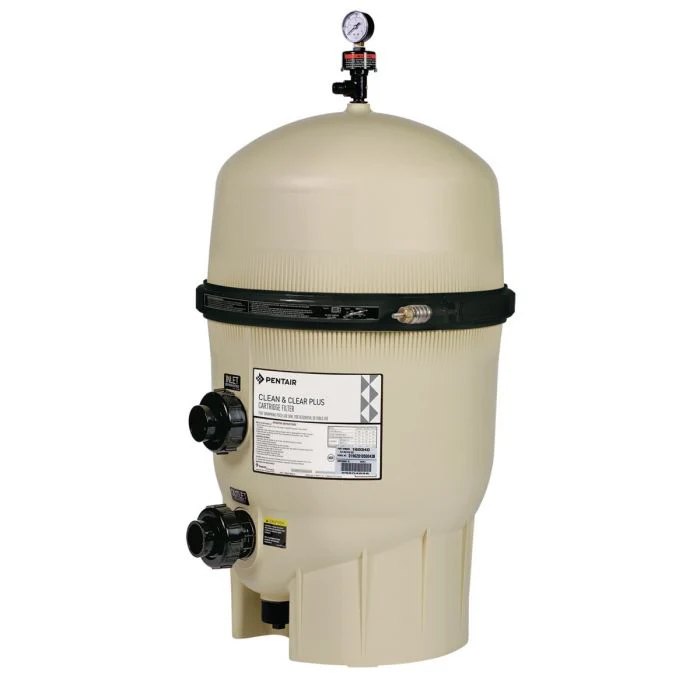

Pentair CCP420 EC-160301 Clean & Clear Plus Multi Cartridge Filter, 420 Sq Ft
Pentair CCP420 EC-160301 Clean & Clear Plus Multi Cartridge Filter, 420 Sq Ft

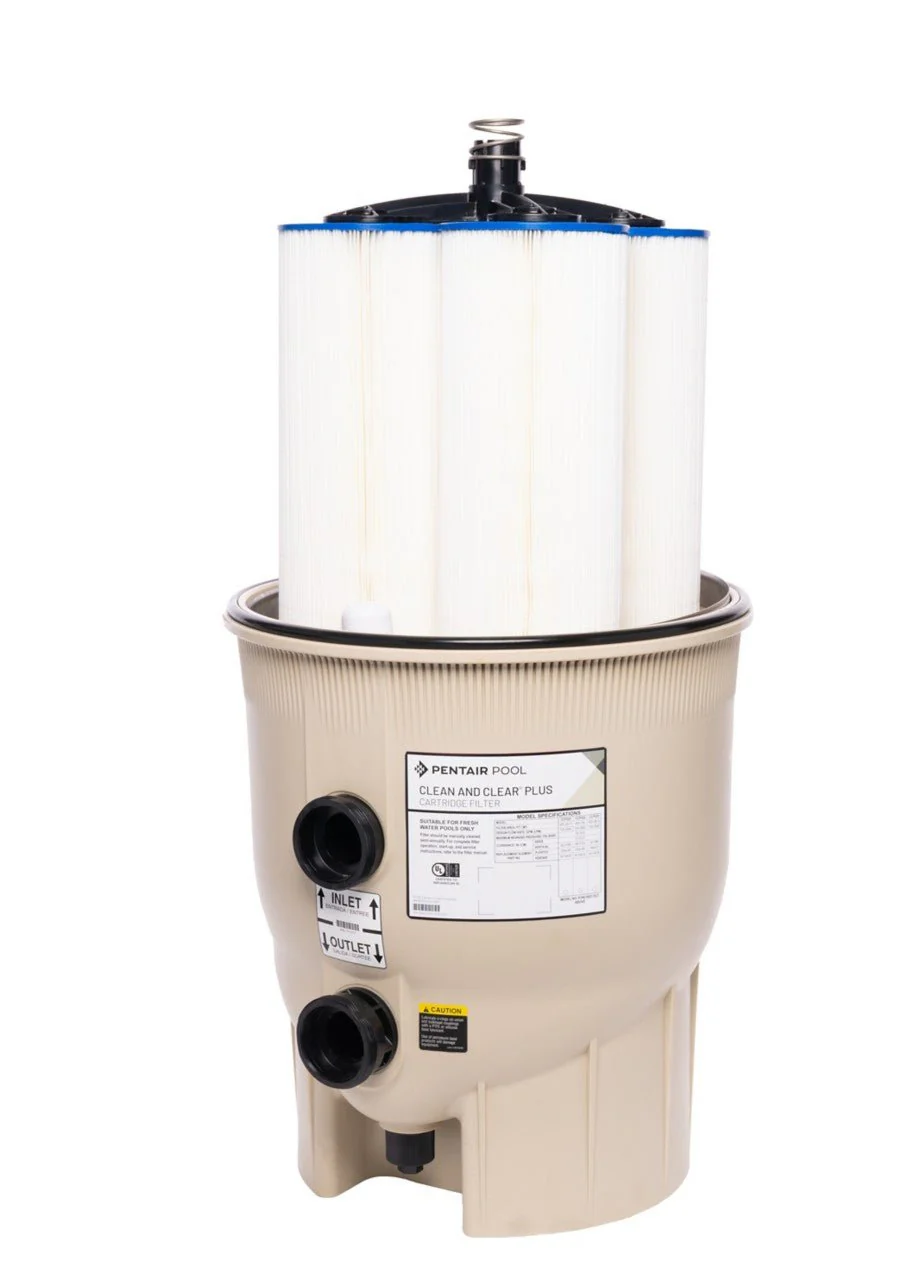

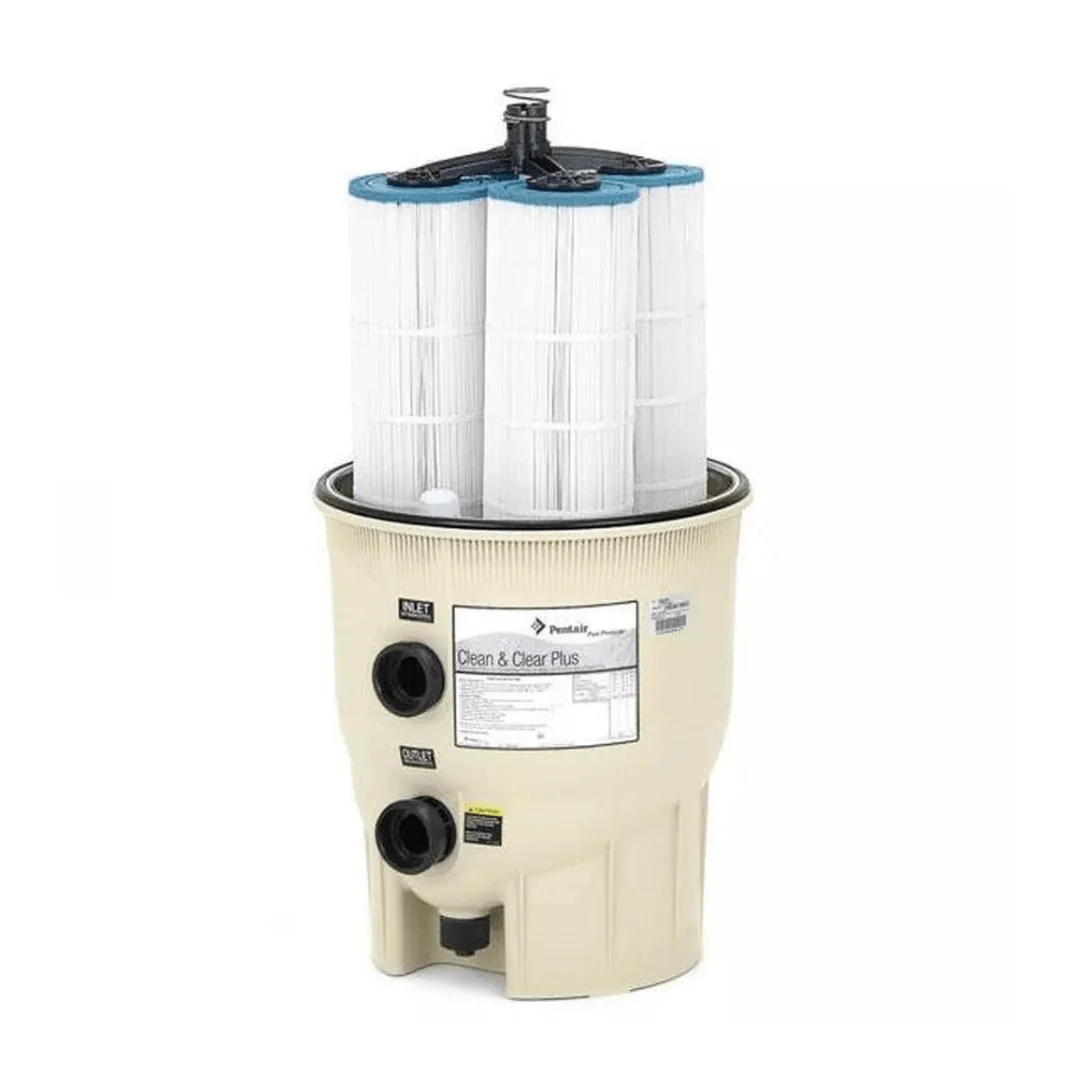

The Clean & Clear Plus Filters feature a corrosion-resistant, injection-molded tank known for its strength and durability. The filter system includes four easy-to-clean, non-woven polyester cartridges. Each filter also has a bulkhead union set, making installation simple and straightforward.
- Certified to NSF/ANSI Standard 50
- Large filter area for increased dirt capacity
- 1-1/2 in., 100% drain clean-out port
- Continuous High Flow™ Internal Air Relief*
- Base and plumbing kits available
- Injection-molded tank
- Balanced hydraulic flow
- Tension Control™ Clamp
- 100% factory tested
- Black bulkhead unions
- High-Flow manual air relief valve

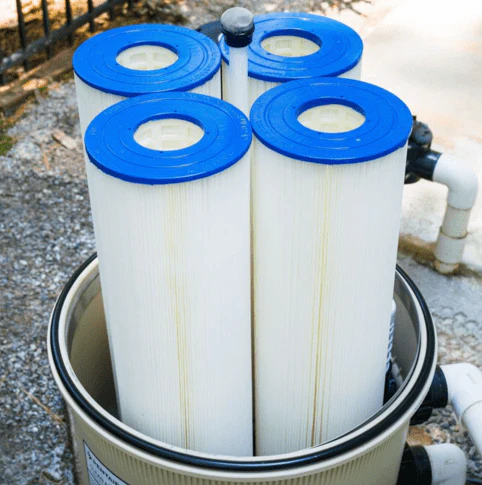

- Includes a system with four (4) cartridges
Specifications:
- Brand: Pentair
- Application: Pool, Spa
- Weight: 75 pounds
- Green or Energy-Efficient Product: True

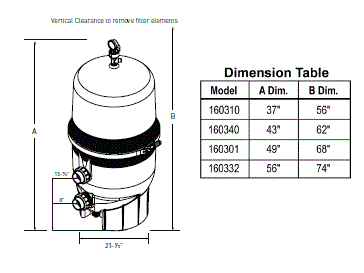

- Height: 49 inch
- Standards Approvals: ANSI Standard 50 Certified
- Cartridges Required: 4 (included)
- Design Flow Rate: 150 gal/min
- Distance Between Inlet/Outlet: 7.49 inch
- Distance Inlet and Base: 17.54 inch
- Distance Outlet and Base: 8.05 inch
- Filter Tank Molding Type: Fiberglass-reinforced
- Filtration Area: 420 square feet
- Maximum Flow Rate: 150 gal/min
- Maximum Working Pressure: 50 pounds per square inch
- Pipe Size: 2 inch
- Plumbing Size: 2 inch
- Side Clearance: 6 inch
- Tank Color: Beige
- Tank Diameter: 22.98 inch
- Tank Material: Fiberglass
- Turnover 12hrs: 108000 gallon
- Turnover 6hrs: 54000 gallon
- Turnover 8hrs: 72000 gallon
- Vertical Clearance: 68 inch
Support Documents:

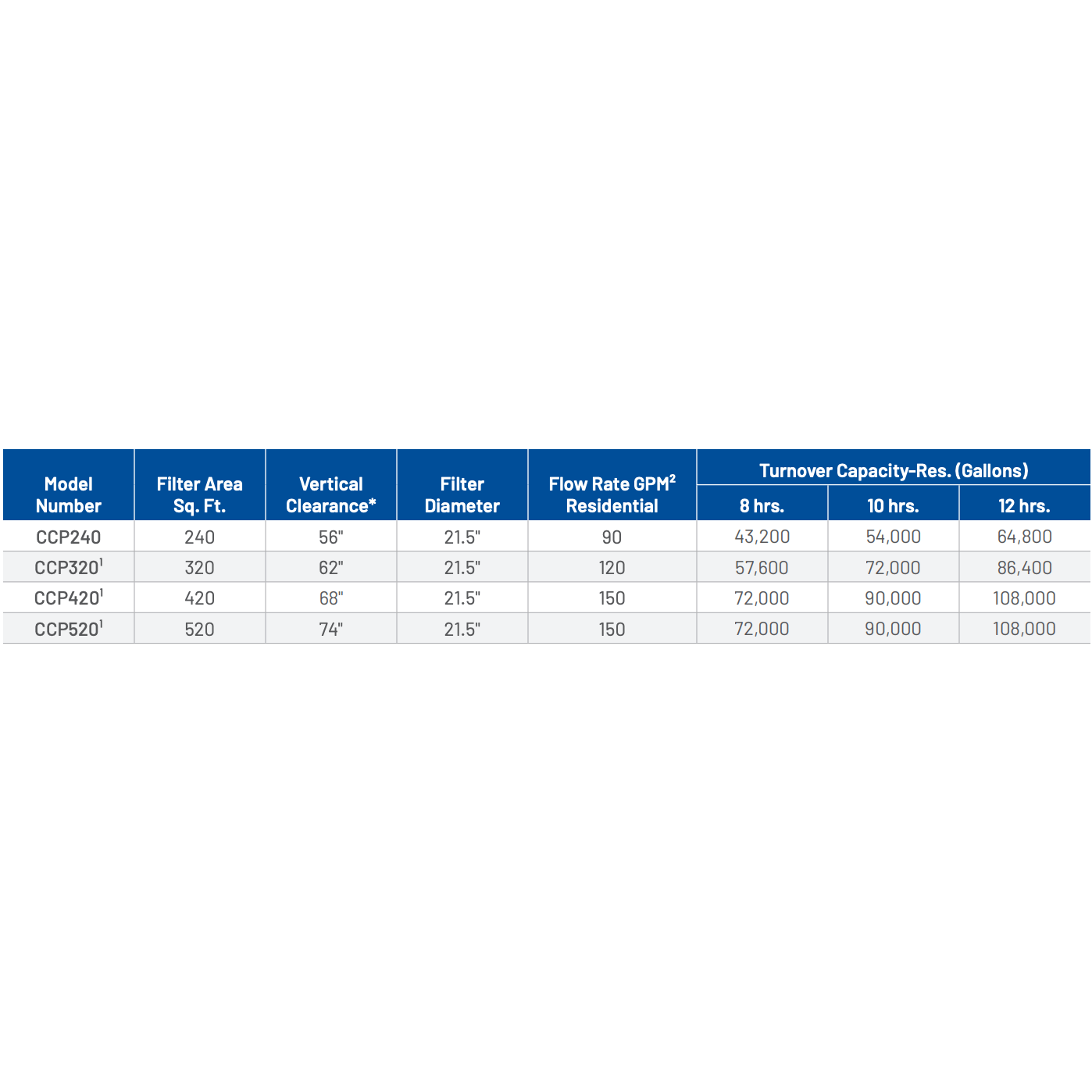

Series Specifications:
- 160310 CCP240 240 90 GPM
- 160340 CCP320 320 120 GPM
- 160301 CCP420 420 150 GPM
- 160332 CCP520 520 150 GPM
- EC-160340 CCP320, 320 120 GPM
- EC-160301 CCP420, 420 150 GPM
- EC-160332 CCP520, 520 150 GPM
Please Note: This pool filter ships via free LTL freight. Someone must be available to sign for delivery. You can view our full shipping policy here.
