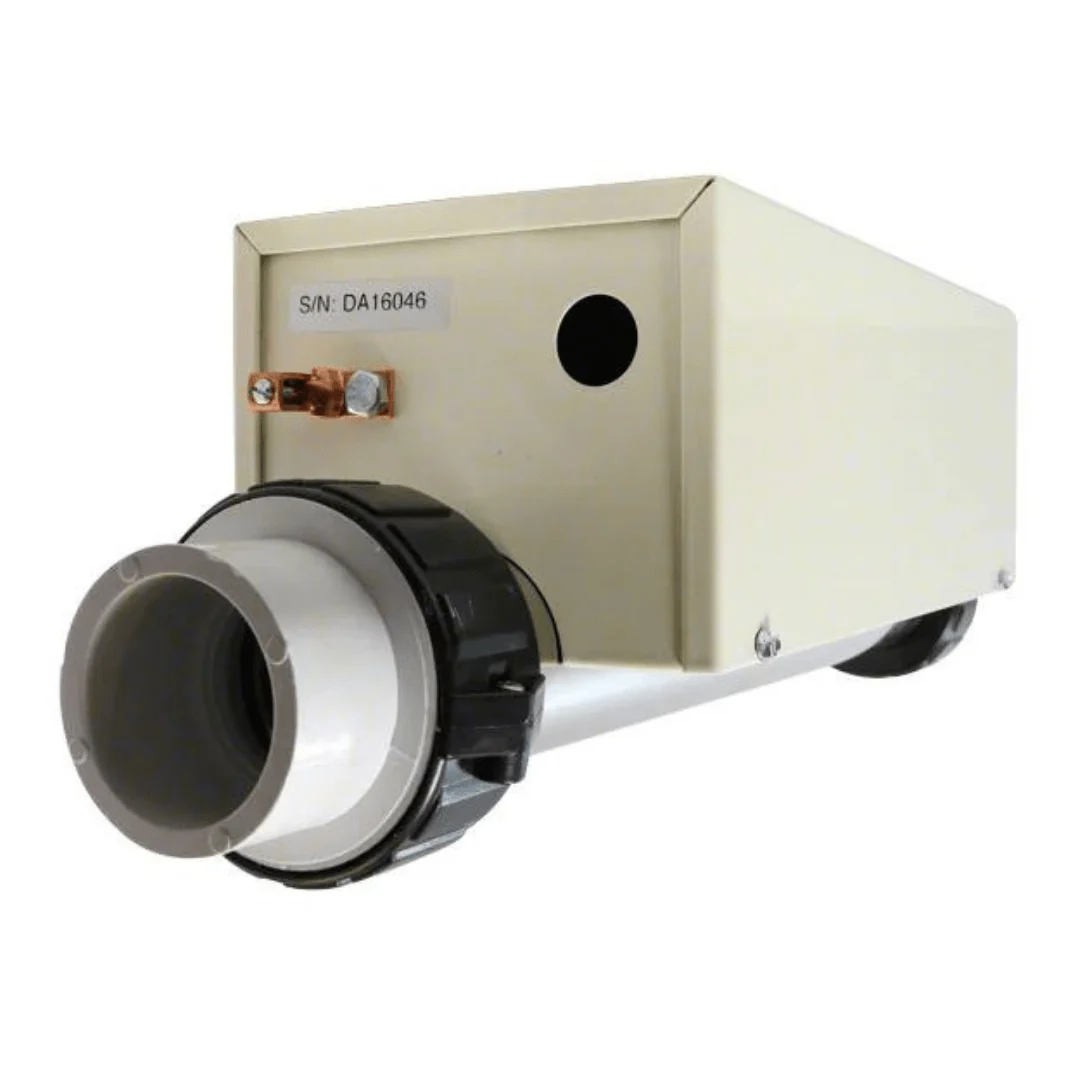

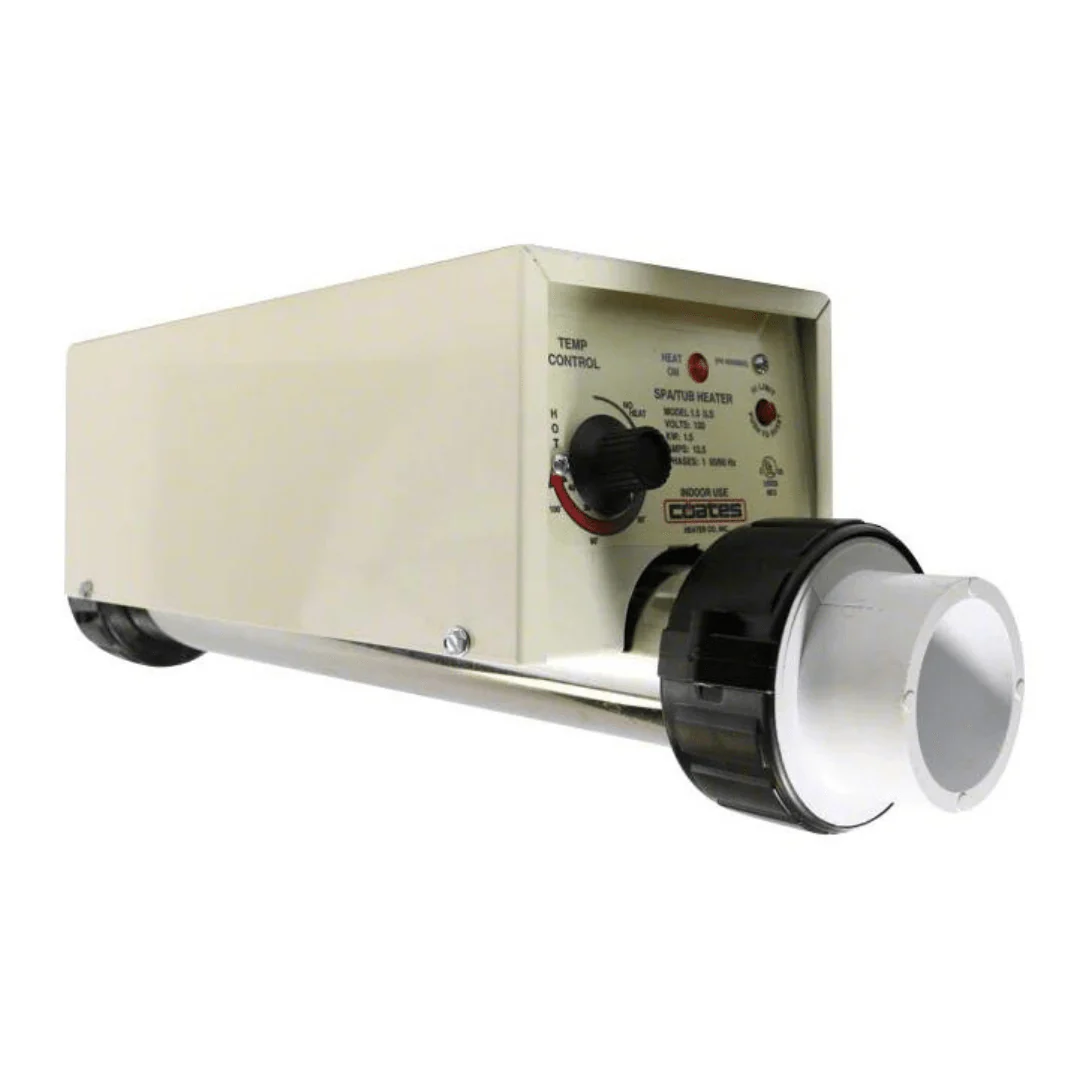

Coates 1.5ILS ILS Electric Spa Heater 1.5KW, 120V, 12A
This Coates ILS In-Line 1.5kW electric spa heater is compact and efficient and features a stainless steel tank and replaceable titanium elements. The ILS spa heater is perfect for residential spas less than 400 gallons. The stainless steel tank is designed to optimize heat transfer by directing the water flow over the elements efficiently. It has a built-in pressure switch which prevents operation when there is no water flow.
- 5,120 BTU's P/H
- Replaceable Titanium elements
- Close differential thermostat
- Control box with powder coated finish
- Manual reset high temp limit
- Element "on" light
- 1-1/2 or 2 inch union connections
- Length with Unions: 19-1/2", Length without Unions: 15"
- UL Listed for Indoor Installation.
Specifications:
- Brand: Coates
- Amperage: 12 amperage
- Application: Pool
- Cabinet Depth: 6 inch
- Cabinet Height: 12 inch
- Cabinet Width: 6 inch
- Commercial, Residential, or Professional: Commercial, Residential
- Weight: 8.15 pounds
- Fuel Type: Electric
- Phase: Single
- Depth: 12 inch
- Height: 6 inch
- Width: 6 inch
- Standards Approvals: UL Listed
- Voltage: 120V
- Wattage: 1.5 kilowatts
- Heat Output: 1.5 kilowatts
